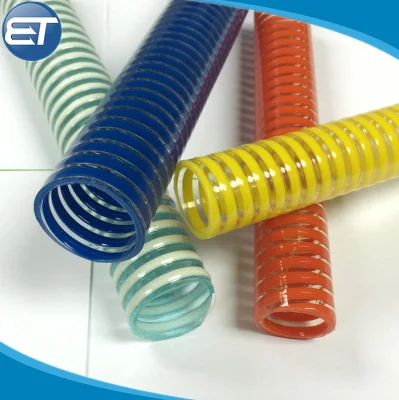

Spiral Reinforced PVC Vacuum Suction Hose for Agricultural Pump

Spiral Reinforced PVC Vacuum Suction Hose for Agricultural Pump. We are a factory specializing in high-quality and durable irrigation solutions.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
PVC Agricultural Suction Hose
Usage
Drainpipe, Water Supply Pipe, Threading Pipe, Wire and Cable Pipe, Agricultural Irrigation Pipe, Corrugated Pipe
Thickness
3mm-12mm
Length
10m/20m/30m/50m
Working Pressure
3bar-10bar
Working Temperature
-5ºC - 65ºC
Features
Abrasion and Chemical Resistant, Impact and Crush
Transporting Medium
Liquid, Powder, Granules
Quality Grade
No Toxic Grade
Connection
Camlock, Kc Nipple, Hose Mender, Bauer, Storz, Pin
Application
Industry, Agriculture and Construction
Reinforced Material
Integral Helix Rigid PVC
Transport Package
Woven Plastic Cloth Wrapped
Specification
3/4"-16"
Trademark
ET
Origin
Shandong, China (Mainland)
HS Code
39173900
Production Capacity
2000tons/Year

Product Description


Spiral Reinforced PVC Vacuum Suction Hose to Agricultural Pump


Spiral Reinforced PVC Vacuum Suction Hose for Agricultural Pump

PVC Agricultural Suction Hose is also called Agricultural Suction Hose, Spiral Reinforced Suction Hose, Spiral Suction Hose, Suction Hosepipe, Water Suction Hose Pipe, Vacuum Suction Hose etc. which is designed for suction and transfer of water in general agricultural applications.
Application:
The Agricultural Suction Hose is an ideal hose for suction and delivery of water, oil, pesticides, seeds, corns, cereals, and others, equipped with pumps, tanks, seeders, trucks and other agricultural machines.
Features:
The Water Suction Hose pipe has good flexibility, anti-abrasion, anti-aging, small bending radius, light weight, Smooth tube, excellent water supply and draining efficiency. And it has good adaptability to hard weather conditions and minus pressure. Meanwhile, it is a good substitute for the rubber hose and metal pipe in some applications.
Temperature Range:- 5°C-65°C
Specification:
Inner Diameter Outer Diameter Weight W.P.(at 23ºC) Std Length
inch mm inch mm kg/m bar psi m ft
3/4 19 0.984  25 0.24 8 120 50 150
1 25 1.181  30 0.3 8 120 50 150
1-1/4 32 1.456  37 0.39 6 90 50 150
1-1/2 38 1.772  45 0.52 6 90 50 150
2 51 2.323 59 0.8 6 90 50 150
2-1/2 63 2.756  70 1.04 5 75 50 150
3 76 3.346  85 1.38 5 75 50 150
4 102 4.448  113 2.22 4 60 30 100
5 127 5.591  142 3 3 45 30 100
6 152 6.575 167 4 2 30 30 100

Note: data in the table is for reference only, when the hose specifications and pitch change,the corresponding wall thickness or m heavy will have corresponding change.We can be adjusted according to customer requirements.
